- Re: c4, AOD, FMX transmission lengths? « Reply #1 on: October 28, 2006, 01:20:22 am » Hey Randy, do a search, I think joel5.0 had a post with pictures and dimensions.
- Although I replaced it with a TKO this yr. Here are the main parts that went into my FMX. Note the GM first gear that went into it. 106004bf M.L.S, sm case 49740-2 hi-eng/race friction 23701k colen steels c6 frt pump bushing filter 146160 fmx single area modu a34654 sprag, T-400/aod/e 6313p-r band, fmx hi-en/race 6362a-r band, fmx/kevlar.
Introduced in 1951, the Cruise-O-Matic series of three-speed automatics (which includes the FMX) was used in Ford, Lincoln and Mercury passenger cars until 1979, and in light trucks from 1968 through 1979.

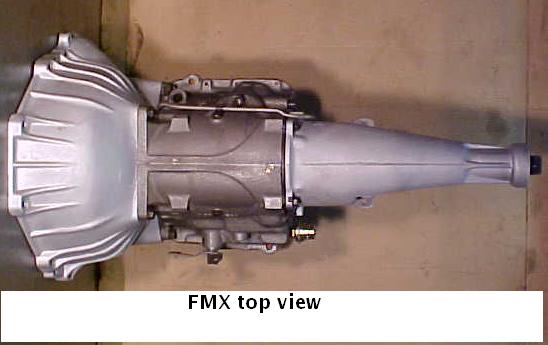

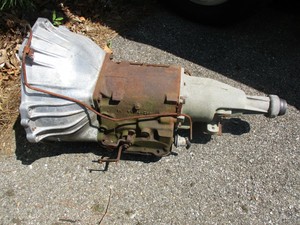

FMX Was used 1968-81 in many Ford products. This is an hydraulically controlled rear wheel drive transmission. It has a cast iron case and an aluminum bell housing and extension housing. It is similar in appearance to the Fordomatic that was used since 1951 and the Borg-Warner BW8 and BW12, but almost none of the parts are interchangeable. 1968 was a cross-over year where the Fordomatic was used in some vehicles for part of the year before changing over to the FMX. Rear cooler line is the cooler return line. Band adjustments: Gear Ratios: | Transmission
